Fixed Precision Resistor Networks

Finn et stort utvalg av Fixed Precision Resistor Networks hos Farnell Norge. Vi lagerfører et stort utvalg av Fixed Precision Resistor Networks, inkludert nye og mest populære produkter fra verdens beste produsenter, inkludert: Vishay, Analog Devices, Vpg Foil Resistors, Caddock & Bourns.

Produsent

Resistance R1

Product Range

Resistance R2

No. of Elements

Network Circuit Type

Resistor Case / Package

No. of Pins

Power Rating per Resistor

Absolute Resistance Tolerance

Absolute TCR

Automotive Qualification Standard

Emballasje

Ingen anvendt(e) filter

0 Valgt(e) filter

			Pris for		Antall

MAX5491TA05000+T	2517438 Data Sheet RoHS	ANALOG DEVICES Resistor Network 5 kohm MAX5491 Series 25 kohm 2 Elements Voltage Divider SOT-23	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	5+ kr 83,230 50+ kr 64,260 250+ kr 58,280 500+ kr 53,570 1000+ kr 52,540	Min.: 5 / Mult: 5	5kohm	MAX5491 Series	25kohm	2Elements	Voltage Divider	SOT-23	3Pins	87.5mW	± 0.035%	± 35ppm/°C	-
CDMM20M0F2500DET	3755593 Data Sheet RoHS Date/Lot Code	VISHAY Resistor Network 20 Mohm CDMM Series 2 Elements Voltage Divider 4527 [11470 Metric]	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	1+ kr 71,160 10+ kr 43,110 20+ kr 42,300	Min.: 1 / Mult: 1	20Mohm	CDMM Series	-	2Elements	Voltage Divider	4527 [11470 Metric]	3Pins	-	-	-	AEC-Q200
CDMM50M0F5000FET	3755594 Data Sheet RoHS	VISHAY Resistor Network 50 Mohm CDMM Series 2 Elements Voltage Divider 4527 [11470 Metric]	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	1+ kr 60,340 10+ kr 39,950 20+ kr 39,120	Min.: 1 / Mult: 1	50Mohm	CDMM Series	-	2Elements	Voltage Divider	4527 [11470 Metric]	3Pins	-	-	-	AEC-Q200
MAX5491LC01000+T	2517436RL Data Sheet RoHS Date/Lot Code	ANALOG DEVICES Resistor Network 15 kohm MAX5491 Series 15 kohm 2 Elements Voltage Divider SOT-23	Each (Supplied on Cut Tape) Gjenopprulling Emballasjealternativer	5+ kr 102,890 50+ kr 72,880 250+ kr 62,420 500+ kr 57,480 1000+ kr 56,330	Min.: 10 / Mult: 5	15kohm	MAX5491 Series	15kohm	2Elements	Voltage Divider	SOT-23	3Pins	87.5mW	± 0.1%	± 35ppm/°C	-
MAX5491LC01000+T	2517436 Data Sheet RoHS	ANALOG DEVICES Resistor Network 15 kohm MAX5491 Series 15 kohm 2 Elements Voltage Divider SOT-23	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	5+ kr 102,890 50+ kr 72,880 250+ kr 62,420 500+ kr 57,480 1000+ kr 56,330	Min.: 5 / Mult: 5	15kohm	MAX5491 Series	15kohm	2Elements	Voltage Divider	SOT-23	3Pins	87.5mW	± 0.1%	± 35ppm/°C	-
MAX5491TA05000+T	2517438RL Data Sheet RoHS Date/Lot Code	ANALOG DEVICES Resistor Network 5 kohm MAX5491 Series 25 kohm 2 Elements Voltage Divider SOT-23	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	50+ kr 64,260 250+ kr 58,280 500+ kr 53,570 1000+ kr 52,540	Min.: 100 / Mult: 5	5kohm	MAX5491 Series	25kohm	2Elements	Voltage Divider	SOT-23	3Pins	87.5mW	± 0.035%	± 35ppm/°C	-
CDMM20M0F2500DET	3755593RL Data Sheet RoHS Date/Lot Code	VISHAY Resistor Network 20 Mohm CDMM Series 2 Elements Voltage Divider 4527 [11470 Metric]	Each (Supplied on Cut Tape) Gjenopprulling Emballasjealternativer	20+ kr 42,300	Min.: 100 / Mult: 1	20Mohm	CDMM Series	-	2Elements	Voltage Divider	4527 [11470 Metric]	3Pins	-	-	-	AEC-Q200
CDMM50M0F5000FET	3755594RL Data Sheet RoHS	VISHAY Resistor Network 50 Mohm CDMM Series 2 Elements Voltage Divider 4527 [11470 Metric]	Each (Supplied on Cut Tape) Gjenopprulling Emballasjealternativer	20+ kr 39,120	Min.: 100 / Mult: 1	50Mohm	CDMM Series	-	2Elements	Voltage Divider	4527 [11470 Metric]	3Pins	-	-	-	AEC-Q200
LT5400AIMS8E-3#PBF	4032657 Data Sheet RoHS Date/Lot Code	ANALOG DEVICES Resistor Network 10 kohm LT5400 Series 100 kohm 4 Elements Voltage Divider MSOP	Each	1+ kr 315,560 10+ kr 225,430 50+ kr 197,040 100+ kr 183,360 250+ kr 168,530 Flere priser ....	Min.: 1 / Mult: 1	10kohm	LT5400 Series	100kohm	4Elements	Voltage Divider	MSOP	8Pins	800mW	± 7.5%	± 25ppm/°C	-
CDMA5M00F5000DE5	3953421 Data Sheet RoHS	VISHAY Resistor Network 5 Mohm CDMA Series 2 Elements Voltage Divider 2512 [6432 Metric]	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	1+ kr 64,150 10+ kr 44,030 50+ kr 31,150 100+ kr 27,250 200+ kr 23,800	Min.: 1 / Mult: 1	5kohm	CDMA Series	-	2Elements	Voltage Divider	2512 [6432 Metric]	3Pins	1W	± 1%	-	AEC-Q200
LT5400BMPMS8E-7#PBF	4032680 Data Sheet RoHS Date/Lot Code	ANALOG DEVICES Resistor Network 1.25 kohm LT5400 Series 5 kohm 4 Elements Voltage Divider MSOP	Each	1+ kr 278,310 10+ kr 209,910 50+ kr 168,870 100+ kr 162,320 250+ kr 157,720 Flere priser ....	Min.: 1 / Mult: 1	1.25kohm	LT5400 Series	5kohm	4Elements	Voltage Divider	MSOP	8Pins	800mW	± 7.5%	± 25ppm/°C	-
CDMA5M00F5000DE5	3953421RL Data Sheet RoHS	VISHAY Resistor Network 5 Mohm CDMA Series 2 Elements Voltage Divider 2512 [6432 Metric]	Each (Supplied on Cut Tape) Gjenopprulling Emballasjealternativer	100+ kr 27,250 200+ kr 23,800	Min.: 100 / Mult: 1	5kohm	CDMA Series	-	2Elements	Voltage Divider	2512 [6432 Metric]	3Pins	1W	± 1%	-	AEC-Q200

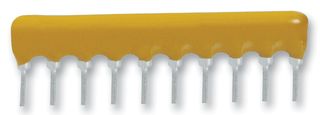

4610X-104-331/471L	1612548 Data Sheet RoHS Date/Lot Code	BOURNS Resistor Network 330 ohm 4600X Series 470 ohm 16 Elements Dual Terminator SIP	Each	1+ kr 5,480 50+ kr 2,680 100+ kr 2,410 250+ kr 2,210 500+ kr 2,060 Flere priser ....	Min.: 1 / Mult: 1	330ohm	4600X Series	470ohm	16Elements	Dual Terminator	SIP	10Pins	200mW	± 2%	± 100ppm/°C	-
CDHVAF100MF2500FET	1845239 Data Sheet RoHS	VISHAY Resistor Network 400 kohm CDHV Series 0.1 Gohm 2 Elements Voltage Divider	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	1+ kr 86,790 10+ kr 64,260 20+ kr 54,490	Min.: 1 / Mult: 1	400kohm	CDHV Series	0.1Gohm	2Elements	Voltage Divider	2512 [6432 Metric]	3Pins	-	± 1%	± 100ppm/°C	-
MPMT2002ATS	1203392 Data Sheet RoHS Date/Lot Code	VISHAY Resistor Network 10 kohm MPMT Series 10 kohm 2 Elements Voltage Divider SOT-23	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	1+ kr 75,300 10+ kr 56,560 20+ kr 55,410	Min.: 1 / Mult: 1	10kohm	MPMT Series	10kohm	2Elements	Voltage Divider	SOT-23	3Pins	100mW	± 0.1%	± 25ppm/°C	-
AORN5-1AT3	2481056 Data Sheet RoHS Date/Lot Code	VISHAY Resistor Network Precision 10 kohm AORN Series 2 kohm 4 Elements Voltage Divider NSOIC	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	1+ kr 41,260 10+ kr 32,650 25+ kr 29,340 50+ kr 26,540 100+ kr 22,830 Flere priser ....	Min.: 1 / Mult: 1	10kohm	AORN Series	2kohm	4Elements	Voltage Divider	NSOIC	8Pins	100mW	± 0.1%	± 25ppm/°C	AEC-Q200
AORN5-1AT3	2481056RL Data Sheet RoHS Date/Lot Code	VISHAY Resistor Network Precision 10 kohm AORN Series 2 kohm 4 Elements Voltage Divider NSOIC	Each (Supplied on Cut Tape) Gjenopprulling Emballasjealternativer	100+ kr 22,830 300+ kr 19,730 1500+ kr 18,130 3000+ kr 17,820	Min.: 100 / Mult: 1	10kohm	AORN Series	2kohm	4Elements	Voltage Divider	NSOIC	8Pins	100mW	± 0.1%	± 25ppm/°C	AEC-Q200
MPMT20018001AT5	1572808 Data Sheet RoHS Date/Lot Code	VISHAY Resistor Network 2 kohm MPMT Series 8 kohm 2 Elements Voltage Divider SOT-23	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	1+ kr 67,250 10+ kr 47,710 50+ kr 40,580 100+ kr 35,980 200+ kr 32,760 Flere priser ....	Min.: 1 / Mult: 1	2kohm	MPMT Series	8kohm	2Elements	Voltage Divider	SOT-23	3Pins	100mW	± 0.1%	± 25ppm/°C	-
MPMT10015001ATS	1203388 Data Sheet RoHS Date/Lot Code	VISHAY Resistor Network 1 kohm MPMT Series 5 kohm 2 Elements Voltage Divider SOT-23	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	1+ kr 89,090 10+ kr 71,730 50+ kr 57,820 100+ kr 50,350 200+ kr 42,990 Flere priser ....	Min.: 1 / Mult: 1	1kohm	MPMT Series	5kohm	2Elements	Voltage Divider	SOT-23	3Pins	100mW	± 0.1%	± 25ppm/°C	-
MAX5490MA02000+T	2517431 Data Sheet RoHS	ANALOG DEVICES Resistor Network 33.34 kohm MAX5490 Series 66.67 kohm 2 Elements Voltage Divider SOT-23	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	5+ kr 52,080 50+ kr 38,970 250+ kr 32,530 500+ kr 30,810 1000+ kr 30,580 Flere priser ....	Min.: 5 / Mult: 5	33.34kohm	MAX5490 Series	66.67kohm	2Elements	Voltage Divider	SOT-23	3Pins	67.2mW	± 0.035%	± 35ppm/°C	-
MAX5491LA01000+T	2517434 Data Sheet RoHS	ANALOG DEVICES Resistor Network 15 kohm MAX5491 Series 15 kohm 2 Elements Voltage Divider SOT-23	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	5+ kr 96,100 50+ kr 72,880 250+ kr 62,420 500+ kr 61,160 1000+ kr 60,010 Flere priser ....	Min.: 5 / Mult: 5	15kohm	MAX5491 Series	15kohm	2Elements	Voltage Divider	SOT-23	3Pins	87.5mW	± 0.035%	± 35ppm/°C	-
MPMT10012001ATS	1203389 Data Sheet RoHS Date/Lot Code	VISHAY Resistor Network 1 kohm MPMT Series 2 kohm 2 Elements Voltage Divider SOT-23	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	1+ kr 102,430 10+ kr 75,870 20+ kr 64,380	Min.: 1 / Mult: 1	1kohm	MPMT Series	2kohm	2Elements	Voltage Divider	SOT-23	3Pins	100mW	± 0.1%	± 25ppm/°C	-
MPMT2003AT5	1572811RL Data Sheet RoHS Date/Lot Code	VISHAY Resistor Network 100 kohm MPMT Series 100 kohm 2 Elements Voltage Divider SOT-23	Each (Supplied on Cut Tape) Gjenopprulling Emballasjealternativer	100+ kr 36,560 200+ kr 33,450 500+ kr 30,350	Min.: 100 / Mult: 1	100kohm	MPMT Series	100kohm	2Elements	Voltage Divider	SOT-23	3Pins	100mW	± 0.1%	± 25ppm/°C	-
ACASA1002E1002P100	1549045 Data Sheet RoHS Date/Lot Code	VISHAY Resistor Network 10 kohm ACAS Series 10 kohm 4 Elements Isolated 0612 [1632 Metric]	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	1+ kr 35,180 50+ kr 22,300 100+ kr 20,460 250+ kr 19,540 500+ kr 18,620 Flere priser ....	Min.: 1 / Mult: 1	10kohm	ACAS Series	10kohm	4Elements	Isolated	0612 [1632 Metric]	8Pins	125mW	± 0.1%	± 25ppm/K	-
ACASA4702E4702P100	1549048 Data Sheet RoHS Date/Lot Code	VISHAY Resistor Network 47 kohm ACAS Series 47 kohm 4 Elements Isolated 0612 [1632 Metric]	Each (Supplied on Cut Tape) Cut Tape Emballasjealternativer	1+ kr 40,700 50+ kr 24,950 100+ kr 22,190 250+ kr 19,430 500+ kr 18,740 Flere priser ....	Min.: 1 / Mult: 1	47kohm	ACAS Series	47kohm	4Elements	Isolated	0612 [1632 Metric]	8Pins	125mW	± 0.1%	± 25ppm/K	-
