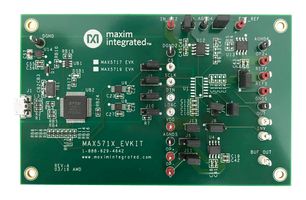

MAX5719EVKIT#

The MAX5719EVKIT# is an evaluation kit for MAX5719GSD+ 20bit digital to analogue converter (DAC). The MAX5719 is a voltage output unipolar digital to analogue converter (DACs) with integrated feedback resistors that allow bipolar operation when used with an external operational amplifier. This DAC provides low glitch energy, low noise, tight bipolar resistor matching and high accuracy. The EV kit includes an onboard master IC for all SPI and I/O communication.

• Onboard SPI controller
• Onboard output buffer (MAX9632)
• Onboard 4.096V reference voltage (MAX6126)
• Windows XP, Windows 7/8/8.1/10 compatible software
• Fully assembled and tested

Applikasjoner

Signal Processing

Innhold

MAX5719 evaluation board, Micro USB cable, Graphical user interface (GUI).

Merknader

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
