AES-XRF8-ZU47-G

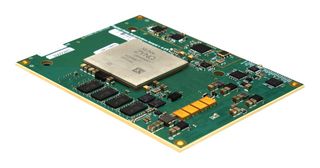

AES-XRF8-ZU47-G is a XRF8™ AMD RFSoC System-on-Module 8-Channel / Gen-3 /6GHz. The Avnet XRF8™ RFSoC System-on-Module is designed for integration into deployed RF systems demanding small footprint, low power and real-time processing. The XRF8 features the AMD Zynq® UltraScale+™ RFSoC Gen3 ZU47DR, with 8 RF-ADC, 8 RF-DAC channels and 6GHz RF bandwidth. AMD Zynq UltraScale+ Gen3 ZU47DR RFSoC features 8x ADCs, 14bit up to 5GSPS, 8x DACs, 14bit up to 8.92GSPS (10GSPS available), Quad-core Arm® Cortex®-A53 processing subsystem, 1GbE, PCIe Gen1/2, SATA, USB2/3 and ultraScale+ programmable logic. Quad Mesh™ firmware combines AMD Aurora protocol with GTY transceivers to stream data with four peers, facilitating tiling in high-performance real-time systems. Target applications are phased array radar, 5G Massive MIMO, hybrid beamforming, signal detection & jamming, medical imaging and multi-channel RF instrumentation.

• High-speed data transfer: 16x ultra-fast AMD GTY serial transceivers
• Clocks & synchronization: ultra-low jitter programmable sampling clocks
• External or onboard programmable TCXO reference clock
• Phase coherent synchronous sampling across all converters & multiple boards
• 4GB DDR4 at programmable logic, 4GB DDR4 at processor subsystem memory
• 32GB eMMC persistent storage and 128MB QSPI boot storage memory
• 4” x 5” footprint
• 5.5V to 16V input voltage
• Temperature monitor and industrial temperature rated
• Air and conduction cooling options

Innhold

XRF8 System-on-Module, Avalon™ software.
