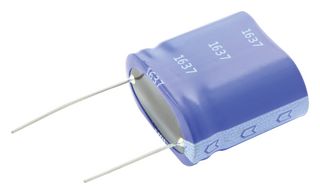

Bildet er bare ment som illustrasjon. Se produktbeskrivelsen.
ProdusentKYOCERA AVX
Produsentens varenummerSCMT22C505PRBA0
Varenummer2696629
ProduktsortimentSCM Series
Teknisk datablad
Føres ikke lenger
Produktinformasjon
ProdusentKYOCERA AVX
Produsentens varenummerSCMT22C505PRBA0
Varenummer2696629
ProduktsortimentSCM Series
Teknisk datablad
Capacitance5F
Voltage(DC)5V
Capacitor TerminalsRadial Leaded
Capacitance Tolerance0%, +100%
Lead Spacing18mm
Lifetime @ Temperature1000 hours @ 60°C
Capacitor Case / PackageCan
Capacitor MountingThrough Hole
ESR0.065ohm
Product Diameter-
Product Length25mm
Product Width12.5mm
Product Height22mm
Product RangeSCM Series
Operating Temperature Min-40°C
Operating Temperature Max65°C
Qualification-
SVHCNo SVHC (17-Jan-2023)
Alternativer for SCMT22C505PRBA0
1 produkt funnet
Produktoversikt
The SCM Series of electromechanical, double-layer series-connected super capacitor modules offer excellent pulse power handling characteristics based on the combination of very high capacitance and very low ESR. Used by themselves or in conjunction with primary or secondary batteries, they provide extended back up time, longer battery life and provide instantaneous power pulses if needed. Offers great solutions to Hold Up, Energy Harvesting and Pulse Power Applications.
- High pulse power capability
- Low ESR
- Low leakage current
Tekniske spesifikasjoner
Capacitance
5F
Capacitor Terminals
Radial Leaded
Lead Spacing
18mm
Capacitor Case / Package
Can
ESR
0.065ohm
Product Length
25mm
Product Height
22mm
Operating Temperature Min
-40°C
Qualification
-
Voltage(DC)
5V
Capacitance Tolerance
0%, +100%
Lifetime @ Temperature
1000 hours @ 60°C
Capacitor Mounting
Through Hole
Product Diameter
-
Product Width
12.5mm
Product Range
SCM Series
Operating Temperature Max
65°C
SVHC
No SVHC (17-Jan-2023)
Teknisk dokumentasjon (3)
Lovgivning og miljø
Opprinnelsesland:
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:China
Land der forrige produksjonsprosess av betydning ble fortatt
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:China
Land der forrige produksjonsprosess av betydning ble fortatt
Tariffnr.:85322900
US ECCN:EAR99
EU ECCN:NLR
Overholdelse av begrensning av farlige stoffer:Ja
RoHS
RoHS-samsvar angående ftalater:Ja
RoHS
SVHC:No SVHC (17-Jan-2023)
Last ned sertifikat for produktsamsvar
Sertifikat for produktsamsvar
Vekt (kg):.004536
