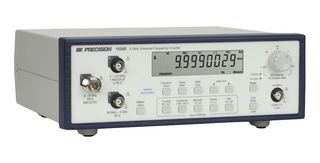

BK1826B

BK1826B is a 1820B series universal frequency counter. It is a compact instrument designed for versatile frequency measurements. Featuring a clear 0.5" LCD, this counter measures a wide frequency range, from 0.001Hz to 6GHz and support frequency, period, ratio, pulse width, and event counting measurements. Equipped with a high-quality temperature-compensated internal frequency reference, these counters provide exceptional stability and accuracy, with a low aging rate of ±1ppm across the entire temperature range. Multiple i/p channels allow for precise measurements across a broad spectrum of frequencies. Input A offers flexible signal conditioning, with configurable coupling (AC/DC), input impedance (1Mohm/50 ohm), attenuation (1:1/5:1), threshold and active edge. With the 1826B, an additional i/p C offers an N-type connector with 50Ω input impedance and frequency range of 2GHz to 6GHz.

• 10-digit display resolution with 0.5” LCD
• Internal rechargeable batteries allow for up 24 hours of operating life
• Frequency ratio measurement function
• Time interval measurement
• Remote control with USB (VCOM) interface
• Selectable measurement time 100s, 10s, 1s and 0.3s
• Complies with EN61010-1 safety standards
• 85 to 240V AC adapter and power consumption 5W max, 15VA max at AC adapter input (charging)
• Dimension is (W x H x D) 260 x 88 x 235mm
• 3 years warranty

Innhold

Universal frequency counter, Universal AC adapter, Certificate of calibration, Battery compliance notice.
