8R4E36E03C3003
Circular Connector, BRAD Micro-Change 120011 Series, Panel Mount Plug, 4 Contacts, Crimp Pin
Trenger du mer?
| Antall | |
|---|---|
| 1+ | kr 161,400 |
| 10+ | kr 149,330 |
| 100+ | kr 137,140 |
| 250+ | kr 126,220 |
Produktinformasjon
Produktoversikt

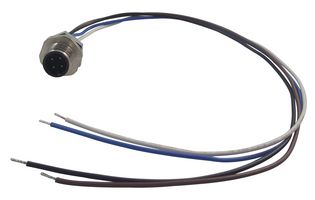

The 8R4E36E03C3003 is a 4-pole single-ended front panel mount Circular Connector with nickel-plated brass body. The Micro-Change® (M12) industry standard connector is rugged, compact and sealed connector used for sensor/actuator connectivity in industrial control applications. The Micro-Change® (M12) connector is designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. This high-quality connector allows fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
- External thread coupling
- M14 x 1.0 Mounting thread
- 4A Maximum current per contact
- 250VAC/DC Maximum voltage
- IP67 Protection
Applikasjoner
Sensing & Instrumentation, Industrial, Automation & Process Control
Tekniske spesifikasjoner
BRAD Micro-Change 120011 Series
4Contacts
Threaded
Nickel
Gold
Panel Mount Plug
Crimp Pin
-
-
Lead (17-Jan-2023)
Teknisk dokumentasjon (1)
Lovgivning og miljø
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:Poland
Land der forrige produksjonsprosess av betydning ble fortatt
RoHS
RoHS
Sertifikat for produktsamsvar
