CY8CKIT-043

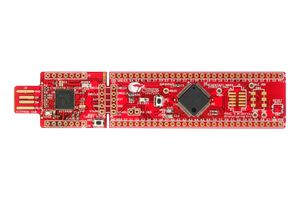

The CY8CKIT-043 is a PSoC 4 M-series prototyping kit. This kit is designed as an easy to use and inexpensive prototyping platform. The PSoC 4200M device is an expansion of the PSoC 4 device family, which offers more flash, GPIOs, programmable analogue and digital blocks. The PSoC 4200M (CY8C4247AZI-M485) device is a true programmable embedded system-on chip, integrating custom analogue and digital peripheral functions, memory and an ARM Cortex -M0 microcontroller on a single chip. The programmable analogue and digital peripheral functions allow higher flexibility, in-field tuning of the design and faster time to market. The PSoC 4 M-series prototyping kit also integrates the Cypress KitProg, which enables onboard programming, debugging and bridging functionality such as USB-UART and USB-I2C. The KitProg is used to program and debug target PSoC 4200M device allows to separate the KitProg board from PSoC 4 M-Series target board.

• 3.3V to 5.5V operation, LED to provide feedback
• Onboard CMOD capacitors to enable CapSense development, bypass capacitors for quality ADC conversion
• Push button to provide an user input, load capacitors to connect 32KHz external crystal oscillator
• Amber LED indicates power on, green LED indicates status & blue LED glows with breathing effect
• Offers an open footprint breakout board to maximize endutility of PSoC 4200M
• PSoC 4200M, PSoC 4200M headers J1 and J2 & PSoC 4200M 10pin program/debug header J5
• KitProg (PSoC 5LP) device U1 (CY8C5868LTI-LP039), KitProg headers J8, J9 & SWD connection J3, J7
• USB finger connector J6, EZ-BLE PRoC module U4 (footprint only)
• 1 DPDT switch SW4 to select SWD target device (footprint only), perforated ‘snappable’ board design
• Current measurement jumper J4 (footprint only)

Applikasjoner

Embedded Design & Development

Innhold

CY8CKIT-043 PSoC 4 M-series prototyping kit, Quick start guide.

Advarsler

Board must be protected from any over current conditions and swapped power connections.
