Produktinformasjon
Produktoversikt

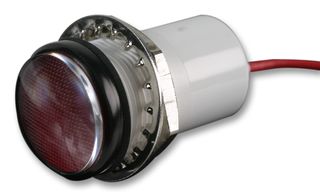

The 557-1503-203F is a high intensity panel-mount red watertight LED Indicator for 11/16-inch mounting hole. This indicator incorporates both InGaN and AlInGaP technologies to offer higher intensities. This is designed to withstand outdoor applications susceptible to rain, dust and sunlight.
- Watertight seal from front of panel meets MIL-L-3661B
- White polycarbonate housing
- Flat polycarbonate lens
- UL94V-0 Flammability rating
- Uniform illumination
- Daylight viewability
- Tamperproof/designed for high durability
Applikasjoner
LED Lighting, Aerospace, Defence, Military, Sensing & Instrumentation, Safety, Consumer Electronics, Automotive, Logistics, Avionics
Tekniske spesifikasjoner
LED Colour
Red
Mounting Hole Dia
17.463mm
Luminous Intensity
1000foot lambert
Product Range
557
Operating Voltage
12VDC
Forward Current If
20mA
IP / NEMA Rating
Not Rated
SVHC
No SVHC (10-Jun-2022)
Teknisk dokumentasjon (1)
Tilknyttede produkter
1 produkt funnet
Lovgivning og miljø
Opprinnelsesland:
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:Mexico
Land der forrige produksjonsprosess av betydning ble fortatt
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:Mexico
Land der forrige produksjonsprosess av betydning ble fortatt
Tariffnr.:85414100
US ECCN:EAR99
EU ECCN:NLR
Overholdelse av begrensning av farlige stoffer:Ja
RoHS
RoHS-samsvar angående ftalater:Ja
RoHS
SVHC:No SVHC (10-Jun-2022)
Last ned sertifikat for produktsamsvar
Sertifikat for produktsamsvar
Vekt (kg):.01134
