411-003

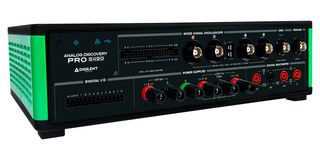

411-003 is an Analog Discovery Pro (ADP5490) kit. It is an integrated CAT II digital multimeter, three programmable power supplies, a dedicated trigger line, and arbitrary waveform generator to complement the mixed signal oscilloscope.

• Four BNC input channels with 8bit resolution with up to ±20V input range
• 500MHz bandwidth, 2GS/s per channel
• One BNC output channel with 14bit resolution, ±12V output range
• Integrated CAT II digital multimeter
• Triggering and cross triggering between instruments
• Digilent’s WaveForms software on Windows
• WaveForms SDK for custom applications and scripting through C/C++, Python, C#, Visual Basic
• LabVIEW support

Innhold

One (1) ADP5490, Four (4) T2500 500MHz x1/x10 oscilloscope probes, One (1) digilent screwdriver, One (1) USB A to B cable, One (1) 2x20 logic analyser MTE cable, One (1) set of red and black DMM probes, One (1) 1x14 digital I/O screw terminal adapter, One (1) US IEC cable, with EU and UK adapters.
