D01627

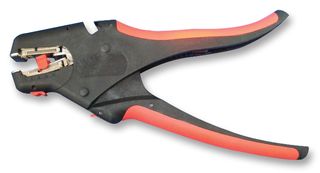

The D01626 a semi-automatic wire stripping tool incorporating a flexible jaw cutting edge consisting of a large number of independent leaf blades on as resilient base. These blades surround each conductor by self-adjustment thus reducing conductor damage. By using a flexible jaw principle, single, round or flat wires may be stripped with ease. The tool will strip wires up to #15 AWG (1.5 mm2) overall cross-section. Make adjustments using the small screw driver supplied.

• Ergonomic design with non-slip handles
• Built in strip stop for constant strip lengths
• Ideal for repetitive strip configuration used in electrical installs and maintenance
• Built in wire cutter can be used for end trimming
• Strips and cuts PVC insulated wire up to 6.0mm 2 (0.126
• inches, 10awg) down to 0.08mm2 (27awg)
• Fine adjusters to accommodate varying insulation thickness and tool cycle characteristics
• Multiple independent strip blades that contour to each conductor
• Replaceable stripper jaws and cutter blade prolongs tool life
• Dimensions: 203 mm
• Weight: 193 g
• Duratool products are rated 4.1 out of 5 stars
• 12 month limited warranty *view Terms & Conditions for details

Applikasjoner

Hobby & Education, Cable & Wire Marking, Electronics Design
