Produktinformasjon
ProdusentDURATOOL
Produsentens varenummerMSP420
Varenummer2444293
Teknisk datablad
Thread Size - Imperial1-3/8"
Thread Size - MetricM6
Head TypePozidriv
Thread Length-
External Length35mm
Fastener MaterialMetal
Fastener PlatingZinc
Product Range-
SVHCNo SVHC (17-Dec-2014)
Produktoversikt

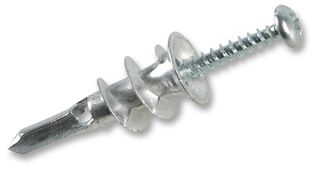

Specially designed zinc die-cast plug for use in plasterboard, chipboard, aerated concrete etc. To install, simply drill a pilot hole and screw the plug into the wall with a Phillips or Pozidriv driver. The object to be mounted is then screwed into the back of the plug as with a normal wall plug. For best results ensure screw length is 20mm more than the thickness of the object to be mounted.
- Specially designed cutting tip for quick installation into plasterboard
- Supplied with No. 6 x 35mm (1⅜") pozi driv roundhead screws
- Alternative screws (6-10 gauge) can be used if required for different fixtures
- The overall length of the plug is 35mm with a maximum screw penetration of 25mm (1")
- Supplied in packs of 100
- Duratool products are rated 4.1 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
Tekniske spesifikasjoner
Thread Size - Imperial
1-3/8"
Head Type
Pozidriv
External Length
35mm
Fastener Plating
Zinc
SVHC
No SVHC (17-Dec-2014)
Thread Size - Metric
M6
Thread Length
-
Fastener Material
Metal
Product Range
-
Teknisk dokumentasjon (1)
Tilknyttede produkter
3 produkter funnet
Lovgivning og miljø
Opprinnelsesland:
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:China
Land der forrige produksjonsprosess av betydning ble fortatt
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:China
Land der forrige produksjonsprosess av betydning ble fortatt
Tariffnr.:74153300
US ECCN:EAR99
EU ECCN:NLR
Overholdelse av begrensning av farlige stoffer:Ikke relevant
RoHS-samsvar angående ftalater:Ikke relevant
SVHC:No SVHC (17-Dec-2014)
Last ned sertifikat for produktsamsvar
Sertifikat for produktsamsvar
Vekt (kg):.776
