FLUKE VPS40-III

This Voltage Probe, 10:1, with safety-designed shrouded 4mm testpin is designed for use with 120 Series ScopeMeter. The shrouded 4mm banana testpin makes this probe also compatible with standard safety-designed crocodile clips.

• Attenuation 10x
• Bandwidth DC to 40 MHz (-3 dB)
• Max Input Voltage 600 V CAT III / 1000 V CAT II as per IEC61010-031:2008
• V*Hz product: 500*10^6 V*Hz
• Input Resistance / Capacitance, 5 MΩ // 15.5 pF
• Compensation Fixed for ScopeMeter 120 Series (14 pF)
• Probe Tip: safety-shrouded 4 mm banana pin with test tip
• Instrument Connector 4 mm shielded banana plug
• Cable Length 1.2 m
• Safety IEC / EN 61010-031:2008; UL61010 B-2-031; CSA C22.2 No. 1010.2.031
• Working Voltage 600 V CAT III / 1000 V CAT II
• Pollution Degree 2
• Protection Class II (double insulation)

Applikasjoner

Test & Measurement

Innhold

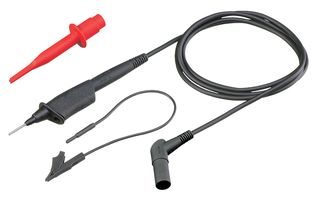

10:1 Voltage Probe, 1 Black, Hook Clip, 1 Red (HC120-III) & Ground Lead with Mini Crocodile, 1 Black.
