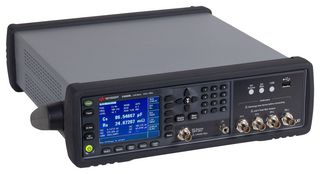

E4980BL/E4980BL-032

E4980BL/E4980BL-032 is a precision LCR meter with DC resistance. It is an industry-standard LCR meter that combines accuracy, speed, and versatility for a wide range of component measurements. The E4980BL is an essential tool for general R&D and manufacturing tests of components and materials, offering fast measurement speed and exceptional performance across both low and high-impedance ranges. The versatile LAN, USB, and GPIB PC connectivity enhance your design and test productivity. For materials measurements, the E4980BL paired with the Keysight N1500A-005/006 materials measurement suite simplifies the entire process, from fixture setup to report generation.

• 20Hz to 300KHz frequency with four-digit resolution
• 0.05% basic accuracy with superior measurement repeatability at low and high impedance
• 100uV to 2Vrms, 1uA to 20mA variable test signal
• DC bias 1.5 / 2V
• Auto-level control
• 201 points list measurement sweep
