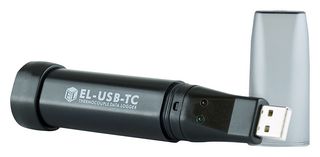

EL-USB-TC

This data logger measures and stores over 32,000 temperature readings from either a K, J or T type thermocouple . A thermocouple is attached via the thermocouple socket at the base of the unit. The user can easily set up the thermocouple type, thermocouple calibration, logging rate, start-time, logging mode, and download the stored data by plugging the module straight into a PC's USB port and running the purpose designed downloadable software under Windows 98, 2000, XP, 7 & 8 (available as a free download from www.easylogusb.com). Data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 3 years. The data logger is protected against moisture.

• USB Interface for set-up and data download
• 2 User-Programmable alarm thresholds
• Bright red and green LED Indication
• Replaceable internal lithium battery
• Logging rate (1s, 10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
• High and low alarms
• Start date and start Time
• Range of logging modes available
• Calibration facility

Applikasjoner

Test & Measurement, Food & Drink, Building & Site Monitoring, Laboratory, Oven Monitoring, Dry Ice Shipments

Innhold

Data Logger, 1.5M K-type Thermocouple Probe, ½ AA Battery and Wall Mount Clip.

Merknader

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
