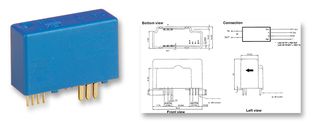

LAS 50-TP
Current Transducer, LAS Series, 50A, -150A to 150A, 1 %, Voltage Output, 4.75 Vdc to 5.25 Vdc
Trenger du mer?
| Antall | |
|---|---|
| 1+ | kr 370,160 |
| 5+ | kr 362,810 |
| 10+ | kr 355,340 |
| 25+ | kr 347,980 |
| 50+ | kr 340,510 |
Produktinformasjon
Produktoversikt
The LAS 50-TP is a Current Transducer with isolated plastic case construction. The LAS series current transducer features as an electronic measurement of currents DC, AC, pulsed, mixed with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). It is used for AC variable speed and servo motor drives, static converters for DC motor drives, battery supplies, uninterruptible power supplies (UPS), switched mode power supplies (SMPS) and power supplies for welding applications.
- Unipolar voltage supply
- Compact design for PCB mounting
- Excellent accuracy
- Very good linearity
- Very low temperature drift
- Wide frequency bandwidth
- No insertion losses
- High immunity to external interference
- UL94V-0 Flammability rating
Applikasjoner
Sensing & Instrumentation, Motor Drive & Control, Power Management, Industrial
Tekniske spesifikasjoner
Voltage
4.75V
5.25V
1%
-150A to 150A
50A
Through Hole
85°C
No SVHC (27-Jun-2024)
5V
AC / DC / Pulsed
-150A to 150A
Eta
500ns
1%
-40°C
LAS Series
