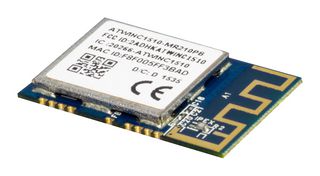

ATWINC1510-MR210PB

ATWINC1510-MR210PB is a low power consumption 802.11 b/g/n IoT (Internet of Things) module, specifically optimized for low power IoT applications. The module integrates Power Amplifier (PA), Low-Noise Amplifier (LNA), Switch, Power Management, and a printed antenna in a small form factor (21.7 x 14.7 x 2.1 mm) design. It is interoperable with various vendors’ 802.11 b/g/n access points. This module provides SPI ports to interface with a host controller.

• Single spatial stream in 2.4GHz ISM band
• Integrated transmit/receive switch
• Superior sensitivity and range via advanced PHY signal processing
• Advanced equalization and channel estimation
• Advanced carrier and timing synchronization
• Wi-Fi® Direct, soft-AP support
• Supports IEEE 802.11 WEP, WPA, WPA2 security
• On-chip memory management engine to reduce host load
• SPI host interface
• Operating temperature range from -40°C to +85°C

Advarsler

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
