19034-0005

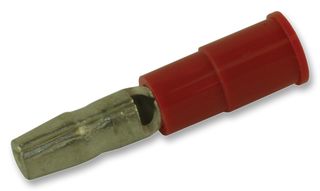

Bullet Terminal, InsulKrimp 19034, 22AWG to 18AWG, Male Bullet, PVC (Polyvinylchloride)
Trenger du mer?
| Antall | |
|---|---|
| 1+ | kr 6,040 |
| 10+ | kr 5,280 |
| 50+ | kr 4,380 |
| 100+ | kr 3,920 |
| 500+ | kr 3,620 |
| 1000+ | kr 3,380 |
Produktinformasjon
Produktoversikt
The 19034-0005 is an InsulKrimp™ male snap plug terminal made of copper with tin plated finish for 22 to 18AWG wire. This 19034 series partial insulated plug terminal comes with PVC insulation and closed barrel. Molex snap plug terminal is used in a variety of applications where a "quick disconnect" connection is desired. It is ideal for applications with space limitations, the round bullet like plug "snaps" into the female receptacle. Similar to other quick disconnects, the male and female terminals can be connected and disconnected multiple times.
- 22.61mm length
- Intermateable with other industry standard plugs and receptacles
- Designed for multi-connections and disconnections
- Provides design engineers a choice of size and current rating
- UL94V-0 flammability rating
- Maximum voltage is 600V
Applikasjoner
Commercial Vehicle, Consumer Electronics
Tekniske spesifikasjoner
InsulKrimp 19034
22AWG
-
-
Copper
No SVHC (21-Jan-2025)
22AWG to 18AWG
18AWG
Male Bullet
PVC (Polyvinylchloride)
3.96mm
Teknisk dokumentasjon (4)
Alternativer for 19034-0005
1 produkt funnet
Tilknyttede produkter
1 produkt funnet
Lovgivning og miljø
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:United States
Land der forrige produksjonsprosess av betydning ble fortatt
RoHS
RoHS
Sertifikat for produktsamsvar
