DMS-30PC-1-RS-C

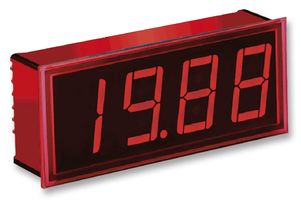

The DMS-30PC-1-RS-C is a 3-1/2-digit standard red Miniature Digital Panel Voltmeter with LED display low-power. The meter is achieved by integrating their display, display drivers, reference circuit and A/D converter into in a single epoxy-encapsulated assembly. It incorporates an extremely stable, double-regulated reference and is fully calibrated prior to potting. It guarantees outstanding initial accuracy and excellent stability (±0.15 counts/°C). It operates from a single 5V supply and the low-power models draw as little as 10mA (50mW total power). A DISPLAY TEST function is standard on each device. It includes a complete line of optional "plug-on" application boards that conveniently convert your meter into an application-specific instrument.

• User-selectable decimal point placement
• Auto-calibration, ±1 count accuracy
• 0 to 60°C Temperature range

Applikasjoner

Industrial, Metering, Test & Measurement
