785624-01

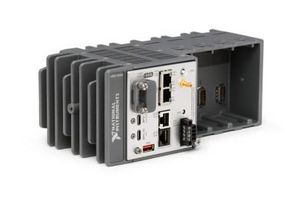

785624-01 is a cRIO-9040 rugged, high-performance, customizable embedded controller that offers Intel Atom dual-core processing, NI-DAQmx support, and an SD card slot for data-logging, embedded monitoring, and control. It includes a Kintex-7 70T FPGA with LabVIEW FPGA Module support for advanced control and coprocessing. The controller provides precise, synchronized timing and deterministic communications using Time Sensitive Networking (TSN), which is ideal for highly distributed measurements. This controller offers several connectivity ports, including Gigabit Ethernet, USB 3.1, USB 2.0, RS232, and RS485 ports. You can use the USB 3.1 ports to add a local human machine interface and program, deploy, and debug software, which simplifies application development.

• Two Ethernet ports on controller, four slot count
• 1.30GHz dual core Intel Atom processor core, 2GB RAM size, 4GB hard drive memory size
• Operating temperature range from -20 °C to 55 °C
• GigE vision support
