OM13085UL

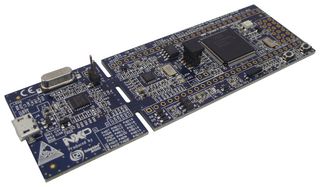

The OM13085 is a pioneered by NXP and Embedded Artists, the LPCXpresso™ Development Platform includes LPCXpresso target boards to get you up and running quickly. Designed for simple, rapid prototyping and evaluation, LPCXpresso™ development boards work with the LPCXpresso IDE and other industry leading partner tool chains. LPCXpresso™ is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production. This LPCXpresso™ board is populated with the LPC1769 to demonstrate and enable evaluate of the features of the LPC1700 product series. The board includes an on-board, CMSIS-DAP compatible debug probe as well as a connector for use with 3rd party debug probes.

• LPC1769 Cortex-M3 based microcontroller
• Integrated CMSIS-DAP debug probe
• Debug probe section of the board can be snapped off to reduce board size
• 10-pin SWD connector for use with an external debug probe
• Ethernet 10/100 PHY
• Reset and ISP boot mode buttons
• Tricolor LED
• LPCXpresso/mbed debug expansion connectors

Applikasjoner

Test & Measurement, Industrial
