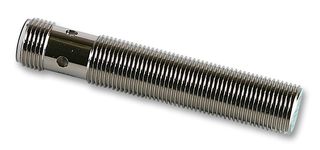

NBB8-18GM50-E2-V1
Inductive Proximity Sensor, Cylindrical, NBB Series, M18, 8 mm, PNP, 10 V to 30 V
Trenger du mer?
| Antall | |
|---|---|
| 1+ | kr 1 052,000 |
| 5+ | kr 1 031,000 |
| 10+ | kr 1 010,000 |
| 25+ | kr 989,210 |
| 50+ | kr 968,180 |
Produktinformasjon
Produktoversikt
The NBB8-18GM50-E2-V1 is an Inductive Proximity Sensor that is the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery or automation equipment. Pepperl+Fuchs offers innovative, high quality inductive sensor to meet the needs of the worldwide automation and process control markets. Standard inductive sensor features smooth or threaded stainless housings, polarity reversal and short-circuit protected, LED status indication.
- 8mm Operating distance
- PNP make function switching element function
- 0 to 500Hz Switching frequency
- IP67 Protection IEC
- V1-connector connection type
Applikasjoner
Sensing & Instrumentation, Automation & Process Control
Tekniske spesifikasjoner
Inductive Proximity Sensor
70°C
-
PNP
10V
10VDC
3-Wire, PNP, NO
4 Pin M12 Connector
IP67
NBB8-18GM50-E2-V1
8mm
M18
8mm
-
30V
30VDC
Cylindrical M18 Thread
Brass
-40°C
No SVHC (07-Jul-2017)
Teknisk dokumentasjon (1)
Lovgivning og miljø
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:Singapore
Land der forrige produksjonsprosess av betydning ble fortatt
RoHS
RoHS
Sertifikat for produktsamsvar
