44A1121-22-0/9-9
Multicore Cable, Spec 44, Screened, 2 Core, 22 AWG, 0.38 mm², 328 ft, 100 m
4 000 Du kan reservere varen nå
| Antall | |
|---|---|
| 1+ | kr 8 615,000 |
| 5+ | kr 8 389,000 |
| 10+ | kr 8 221,000 |
Produktinformasjon
Produktoversikt

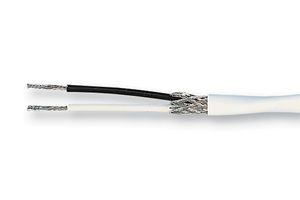

The 44A1121-22-0/9-9 is a 100m 2-core Screened Cable with tin-plated copper conductor and a shield, white PVF2 jacket. The 3822543004 SPEC 44 cable has a dual wall construction which combines the outstanding physical and electrical characteristics of radiation cross-linked polyalkene with the excellent mechanical and chemical properties of radiation cross-linked polyvinylidene fluoride (PVDF). The result is a wire insulation system that offers a 150°C temperature rating, solder iron resistance and resistance to most solvents, fuels and lubricants. SPEC 44 cable is highly flame retardant, non-melting, does not cold flow and though mechanically very tough, is easy to handle and install using conventional tools.
- CPR: Not Yet Qualified
- Small size, light weight
- Low smoke and low corrosive gas generation
- Resistant to most chemicals and electrical arc tracking
Applikasjoner
Industrial, Commercial, Aerospace, Defence, Military, Avionics, Sensing & Instrumentation
Tekniske spesifikasjoner
2Core
0.38mm²
100m
600V
22AWG
328ft
3.353mm
Teknisk dokumentasjon (2)
Tilknyttede produkter
4 produkter funnet
Lovgivning og miljø
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:Great Britain
Land der forrige produksjonsprosess av betydning ble fortatt
RoHS
RoHS
Sertifikat for produktsamsvar
