Skriv ut side

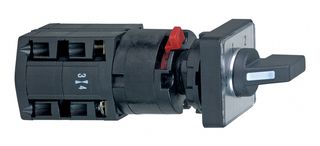

Bildet er bare ment som illustrasjon. Se produktbeskrivelsen.
ProdusentSCHNEIDER ELECTRIC
Produsentens varenummerK10B011UCH
Varenummer3108269
ProduktsortimentHarmony K Series
Teknisk datablad
23 På Lager
Trenger du mer?
1–3 virkedagers levering
Bestilling før 17:00 standard forsendelse
Antall | |
---|---|
1+ | kr 351,200 |
5+ | kr 344,180 |
10+ | kr 337,170 |
Pris for:Each
Minst: 1
Flere: 1
kr 351,20 (eks. MVA)
Legg til delenr. / linjemerknad
Lagt til bestillingsbekreftelsen, fakturaen og følgeseddelen kun for denne bestillingen.
Dette antallet blir lagt til bestillingsbekreftelsen, fakturaen, følgeseddelen, bekreftelses-e-posten og produktetiketten.
Produktinformasjon
ProdusentSCHNEIDER ELECTRIC
Produsentens varenummerK10B011UCH
Varenummer3108269
ProduktsortimentHarmony K Series
Teknisk datablad
No. of Switch Positions2 Position
No. of Poles1 Pole
Angle of Throw60°
Contact Current AC Max10A
Contact Voltage AC Max400V
Product RangeHarmony K Series
IlluminationNon Illuminated
Contact Current DC Max10A
Contact Voltage DC Max24V
SVHCTo Be Advised
Produktoversikt
K10B011UCH is a cam changeover switch. It complies with standards like CENELEC EN 50013, EN/IEC 60947-3, EN/IEC 60947-5-1. It is certified by CULus.
- 10A conventional free air thermal current, front mounting
- With front plate 30 x 30mm cam switch head, black handle operator
- 1-pole, left: 330°, right: 30° switching position
- Contact block: IP20, operating head: IP65 conforming to IEC 60529 (IP degree of protection)
- 440V (pollution degree 3) conforming to IEC 60947-1 rated insulation voltage
- 100000000 cycles mechanical durability, short-circuit protection, slow-break operation
- 4kV conforming to IEC 60947-1 rated impulse withstand voltage
- 1000000 cycles mechanical durability, 18 months warranty
- CAD overall dimension is 30 x 30 x 76mm (W x H x D)
- Ambient air temperature range from -20 to 55°C
Tekniske spesifikasjoner
No. of Switch Positions
2 Position
Angle of Throw
60°
Contact Voltage AC Max
400V
Illumination
Non Illuminated
Contact Voltage DC Max
24V
No. of Poles
1 Pole
Contact Current AC Max
10A
Product Range
Harmony K Series
Contact Current DC Max
10A
SVHC
To Be Advised
Teknisk dokumentasjon (2)
Lovgivning og miljø
Opprinnelsesland:
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:Austria
Land der forrige produksjonsprosess av betydning ble fortatt
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:Austria
Land der forrige produksjonsprosess av betydning ble fortatt
Tariffnr.:85365019
US ECCN:EAR99
EU ECCN:NLR
Overholdelse av begrensning av farlige stoffer:Ja
RoHS
RoHS-samsvar angående ftalater:Ja
RoHS
SVHC:To Be Advised
Last ned sertifikat for produktsamsvar
Sertifikat for produktsamsvar
Vekt (kg):.05
