Trenger du mer?
Antall | |
---|---|
1+ | kr 586,290 |
5+ | kr 568,120 |
10+ | kr 556,740 |
Produktinformasjon
Produktoversikt

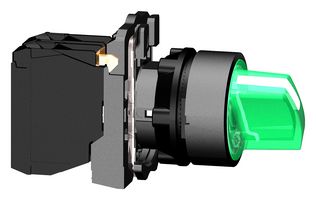

XB5AK123B5 is a Harmony XB5, illuminated modular green selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED and uses screw clamp terminals. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
- 1 NO + 1 NC Contacts type and composition and 2 positions 90°
- Stay put type of operator, slow-break contacts operation
- Screw clamp terminals : <= 2 x 1.5mm² with cable end conforming to EN/IEC 60947-1
- Plastic bezel material, silver alloy (Ag/Ni) contacts material
- Ambient air temperature for operation range from -40 to 70°C
- NEMA 13, NEMA 4X NEMA degree of protection
- IK06 conforming to IEC 50102 IK degree of protection
Tekniske spesifikasjoner
2 Position
90°
120V
Illuminated
125V
1 Pole
6A
Harmony XB5 Series
550mA
Teknisk dokumentasjon (1)
Lovgivning og miljø
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:France
Land der forrige produksjonsprosess av betydning ble fortatt
RoHS
RoHS
Sertifikat for produktsamsvar
