STEVAL-MKI176V1

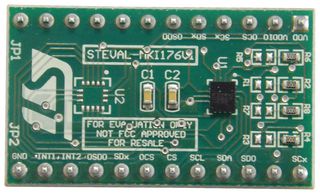

The STEVAL-MKI176V1 from STMicroelectronics is a LSM6DS3H adapter board for standard DIL24 socket. The STEVAL-MKI176V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the LSM6DS3H product family. The board offers an effective solution for fast system prototyping and device evaluation directly inside the user application. The STEVAL-MKI176V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LSM6DS3H pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards which include a high performance 32bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI) or dedicated software routines for customized applications.

• Complete LSM6DS3H pin-out for a standard DIL24 socket
• Fully compatible with the STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards

Applikasjoner

Embedded Design & Development

Merknader

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
