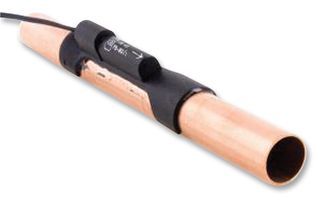

Bildet er bare ment som illustrasjon. Se produktbeskrivelsen.
ProdusentTE CONNECTIVITY
Produsentens varenummerFS-90/1
Varenummer2294172
ProduktsortimentFS Series
Teknisk datablad
65 På Lager
250 Du kan reservere varen nå
GRATIS Standard levering tilgjengelig
for bestillinger over kr 0,00
EKSPRESS-levering tilgjengelig
Bestill før kl. 17.00
nøyaktige leveringstider vil bli beregnet i kassen
Antall | |
---|---|
1+ | kr 312,110 |
5+ | kr 304,410 |
10+ | kr 289,810 |
25+ | kr 285,790 |
50+ | kr 281,650 |
Pris for:Each
Minst: 1
Flere: 1
kr 312,11 (eks. MVA)
Legg til delenr. / linjemerknad
Lagt til bestillingsbekreftelsen, fakturaen og følgeseddelen kun for denne bestillingen.
Dette antallet blir lagt til bestillingsbekreftelsen, fakturaen, følgeseddelen, bekreftelses-e-posten og produktetiketten.
Produktinformasjon
ProdusentTE CONNECTIVITY
Produsentens varenummerFS-90/1
Varenummer2294172
ProduktsortimentFS Series
Teknisk datablad
Flow Switch TypeSPST-NO
Flow Rate Min-
Flow Rate Max3l/min
Operating Pressure Min-
Operating Pressure Max10bar
Supply Voltage Min-
Supply Voltage Max-
Contact Rating1A
Switching Voltage AC Max250V
Switching Voltage DC Max200V
Media TypeWater
Process Connection Size-
Process Connection Type-
Pipe Size15mm
Housing MaterialBrass
Operating Temperature Min-30°C
Operating Temperature Max85°C
Product RangeFS Series
Qualification-
SVHCDibutyl phthalate (DBP) (21-Jan-2025)
Pressure Max10bar
Produktoversikt
FS-90/1 is a flow switch designed for water and air flow switching applications. It offers installation for 15mm copper pipes and features a UL 90HB flammability rating. Applications include leak detection, flow sensing, mains water control, cooling systems, circulation pump protection.
- Rugged high grade noryl, minimum pressure drop
- Operates from a small head of water
- Mount in any axis, suitable for water and air flow switching
- 15mm copper pipe, suitable for hot and cold potable water
- Reed switch reliability file E125629, meets UL 94-HB flammability rating
- Food grade material
- Brass housing, noryl shuttle material, stainless steel spring and ruthenium contact material
- Operating temperature range from -30°C to 85°C
- IP65 protection, black colour housing
- SPST switch action (reed switch), 200VAC/200VDC maximum switching voltage
Tekniske spesifikasjoner
Flow Switch Type
SPST-NO
Flow Rate Max
3l/min
Operating Pressure Max
10bar
Supply Voltage Max
-
Switching Voltage AC Max
250V
Media Type
Water
Process Connection Type
-
Housing Material
Brass
Operating Temperature Max
85°C
Qualification
-
Pressure Max
10bar
Flow Rate Min
-
Operating Pressure Min
-
Supply Voltage Min
-
Contact Rating
1A
Switching Voltage DC Max
200V
Process Connection Size
-
Pipe Size
15mm
Operating Temperature Min
-30°C
Product Range
FS Series
SVHC
Dibutyl phthalate (DBP) (21-Jan-2025)
Teknisk dokumentasjon (1)
Lovgivning og miljø
Opprinnelsesland:
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:Great Britain
Land der forrige produksjonsprosess av betydning ble fortatt
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:Great Britain
Land der forrige produksjonsprosess av betydning ble fortatt
Tariffnr.:90261021
US ECCN:EAR99
EU ECCN:NLR
Overholdelse av begrensning av farlige stoffer:Ja
RoHS
RoHS-samsvar angående ftalater:Ja
RoHS
SVHC:Dibutyl phthalate (DBP) (21-Jan-2025)
Last ned sertifikat for produktsamsvar
Sertifikat for produktsamsvar
Vekt (kg):.0736
