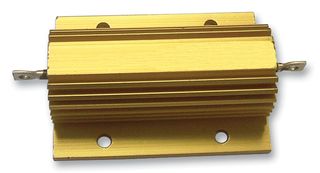

WH100-1R0JI
Resistor, Solder Lug, 1 ohm, WH Series, 100 W, ± 5%, Solder Lug, 1.9 kV
Trenger du mer?
| Antall | |
|---|---|
| 1+ | kr 345,100 |
| 3+ | kr 294,180 |
| 5+ | kr 249,230 |
| 10+ | kr 232,790 |
| 20+ | kr 216,240 |
| 50+ | kr 188,880 |
Produktinformasjon
Produktoversikt
The WH100-1R0JI is a 1Ω 100W through-hole mounting Wirewound Resistor with solder-dipped copper clad steel terminations. Cap and lead assemblies are fitted to a high purity ceramic substrate. The resistive element is wound onto the substrate and welded to the caps. The wound rod is then moulded and fitted into aluminium housing to give optimum stability and reliability. The resistor is legend marked with type reference, resistance value and tolerance which will withstand all accepted industrial cleaning fluids and values are marked in accordance with IEC 62. The aluminium housed wirewound resistor is suitable for severe environments and excellent thermal conductivity to heatsink.
- All welded construction
- High Power Resistor
Advarsler
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Tekniske spesifikasjoner
1ohm
100W
Solder Lug
Wirewound
High Power
65.2mm
24.1mm
200°C
No SVHC (21-Jan-2025)
WH Series
± 5%
1.9kV
± 100ppm/°C
Panel Mount
47.5mm
-55°C
-
Teknisk dokumentasjon (1)
Alternativer for WH100-1R0JI
1 produkt funnet
Lovgivning og miljø
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:India
Land der forrige produksjonsprosess av betydning ble fortatt
RoHS
RoHS
Sertifikat for produktsamsvar
