278-401-000
Multipair Cable, Audio, Per M, Screened, 1 Pair, 24 AWG, 0.22 mm²
Kontakt meg når varen er tilbake på lager
| Antall | |
|---|---|
| 1+ | kr 20,810 |
| 10+ | kr 20,120 |
| 25+ | kr 19,430 |
| 50+ | kr 18,050 |
Produktinformasjon
Produktoversikt

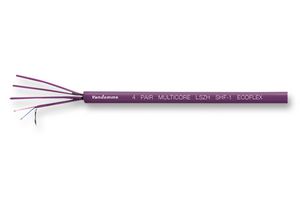

The 278-401-000 is a 2-conductor shielded Digilog Ecoflex AES/analogue Installation Cable with bare ultra-pure oxygen-free copper conductor of 24AWG wire with purple SHF-1 LSZH polymer Red Lilac RAL 4001 jacket of 0.5mm thickness, 3.9mm diameter. Purple Series Digilog Ecoflex is a low smoke zero halogen (LSZH) jacketed audio multicore specifically for installation use. The use of LSZH cables is becoming a specified essential in public buildings and new build construction projects. Based electrically and mechanically on the Van Damme Green Series range this cable will carry AES/EBU and/or analogue balanced audio as well as paired data signals such as RS485, RS422 and DMX512.
- CPR: Not Yet Qualified
- <gt/>9N/mm² Tensile strength (jacket)
- <lt/>90Ω/km conductor resistance
- <gt/>5000MΩ/km Insulation resistance
- 50pF/m Core to core nominal capacitance
Applikasjoner
Audio, Communications & Networking, Building Automation, Industrial
Tekniske spesifikasjoner
Screened
24AWG
-
Purple
500V
Copper
Purple Series
1 Pair
0.22mm²
-
7 x 0.2mm
LSZH
3.9mm
No SVHC (17-Dec-2015)
Teknisk dokumentasjon (1)
Alternativer for 278-401-000
1 produkt funnet
Tilknyttede produkter
5 produkter funnet
Lovgivning og miljø
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:Italy
Land der forrige produksjonsprosess av betydning ble fortatt
RoHS
Sertifikat for produktsamsvar
