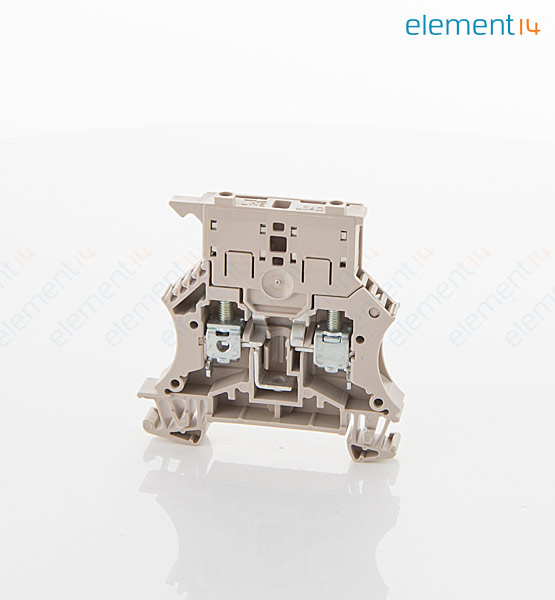

WEIDMULLER 101100 WSI6

Fused Terminal Block, 2 Ways, 20AWG to 8AWG, 6 mm², Screw, 6.3 A, 500 V

WEIDMULLER 101100 WSI6
WEIDMULLER 101100 WSI6
360°
×

Bildet er bare ment som illustrasjon. Se produktbeskrivelsen.

Produsentens varenummer:
101100 WSI6
Varenummer:
1131790
  • Angi delenummeret i tekstboksen over

Part Number Saved

Part Number Saved

Produktsortiment
W
Også kjent som:
1011000000
Teknisk datablad:
101100 WSI6   Datablad
ECAD / MCAD
Supply Frame Models Link
Se alle tekniske dokumenter

Produktserie-velger (W)

Se alt fra denne produktserien

Produktoversikt

The 1011000000 is a Fused Terminal Block with screw connection, 6mm² wire cross section area and fuse isolator for screwable cross section. M3.5 clamping screw and 12mm stripping length. Dark beige color, TS 35mm rail mount and snap-on mounting. The WSI 6 terminal block accepts 20AWG minimum to 8AWG maximum wire size. Hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity. All materials have been tested to current environment guidelines. The W-Series offers solutions for all standard electrical functions. It brings considerable time savings compared to all other screw terminals on the market. Thanks to the patented design of Weidmüller's W-series screw connection technology it is possible for two conductors with the same cross-section to be connected in one and the same clamping yoke without difficulty.
  • Simple operation - Can be clipped to or removed from the terminal rail in either direction
  • Thermally stable up to 120°C
  • Phosphorous- or halogen-free
  • Maintenance-free contacts
  • Highest contact force of all connection systems
  • Electric shock protection with connected conductors, even when cross-connected
  • Wemid insulator
  • UL94V-0 Flammability rating
  • Dimension of fuse terminal is 60mm x 61mm x 7.9mm (L x H x W)
  • G-Si, 5mm x 20mm cartridge fuse
  • Pivoting fuse holder
  • TS 35 mounting rail (Snap-on mounting)
  • Net weight of fuse terminal is 18.36g
  • Operating temperature range from -50°C to 120°C
  • UL94 V-0 flammability rating
  • CE, CSA, DNV, EAC, KEMA EUR approved and UL recognised

Applikasjoner

Industrial

Produktinformasjon

Vil du se lignende produkter? Velg dine ønskede egenskaper nedenfor, og trykk på knappen ×


:
20AWG to 8AWG

:
20AWG

:
8AWG

:
6mm²

:
Screw

:
6.3A

:
500V

:
5mm x 20mm

:
W

Finn lignende produkter Velg og endre egenskapene ovenfor for å finne lignende produkter.

Tekniske dokumenter (3)

Også kjent som

1011000000

1 626 På lager Trenger du mer?

Standard leveringstid for dette produktet er 9 uker.

Bestill før kl. 17.00

Hos deg neste hverdag

På grunn av markedsbetingelsene er leveringstidene kun veiledende og kan endres på kort varsel

kr 60,23
