WAD 101 EU

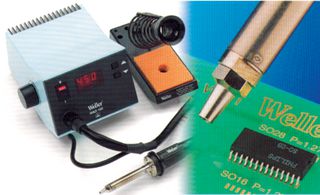

Multi function, hot air station WAD 101 features digital process control for accurate temperature set. The built-in microprocessor circuitry automatically recognizes all Weller soldering irons and provides the optimal setting of the connected tools, as well as, the HAP1 that comes as standard with the station. A wide range of nozzles and tools makes the WAD 101 ideal in many soldering and desoldering applications of surface mount devices. The WAD 101 requires a compressed air supply with oil free, dry air or nitrogen where the airflow is manually controlled. The Weller WCB 1 or WCB 2 calibration unit can be connected to the WAD 101 to further enhance programme setting. PC interface is possible with the WCB 2 only.

• Pilot light showing heating pulses
• Air volume control
• Mains switch
• Seven pin connector for connecting The HAP 1 and other soldering tools
• Multi digital display sets and reads temperature of the selected tool
• Connector for hot air
• HAP 1 hot air pencil
• Finger switch to control air manually
• For operation with external compressed air supply
