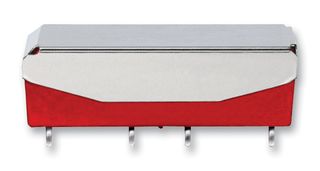

9104-05-11
Reed Relay, SPST-NO, 5 VDC, 9104, Through Hole, 175 ohm, 500 mA
Trenger du mer?
| Antall | |
|---|---|
| 1+ | kr 186,860 |
| 5+ | kr 150,510 |
| 10+ | kr 138,960 |
| 20+ | kr 132,160 |
| 50+ | kr 117,780 |
Produktinformasjon
Produktoversikt
The 9104-05-11 is a high voltage SIP Reed Relay with external magnetic shield and diode. This 9104-series moulded SIP relays are the industry standard when high reliability and consistent performance are desired in a compact package. These high voltage, high performance relays are ideally suited for automatic test equipment, instrumentation and process control applications where voltage isolation is a key design requirement. High reliability, hermetically sealed contacts for long life. high speed switching compared to electromechanical relays. Moulded thermoset body on integral lead frame design.
- High voltage switching up to 1000V
- 2000VDC High dielectric strength
- High insulation resistance
- Magnetic shield
Applikasjoner
Automation & Process Control, Sensing & Instrumentation
Tekniske spesifikasjoner
SPST-NO
9104
175ohm
1kV
5VDC
Through Hole
500mA
No SVHC (21-Jan-2025)
Teknisk dokumentasjon (1)
Lovgivning og miljø
Land der forrige produksjonsprosess av betydning ble fortattOpprinnelsesland:Mexico
Land der forrige produksjonsprosess av betydning ble fortatt
RoHS
RoHS
Sertifikat for produktsamsvar
