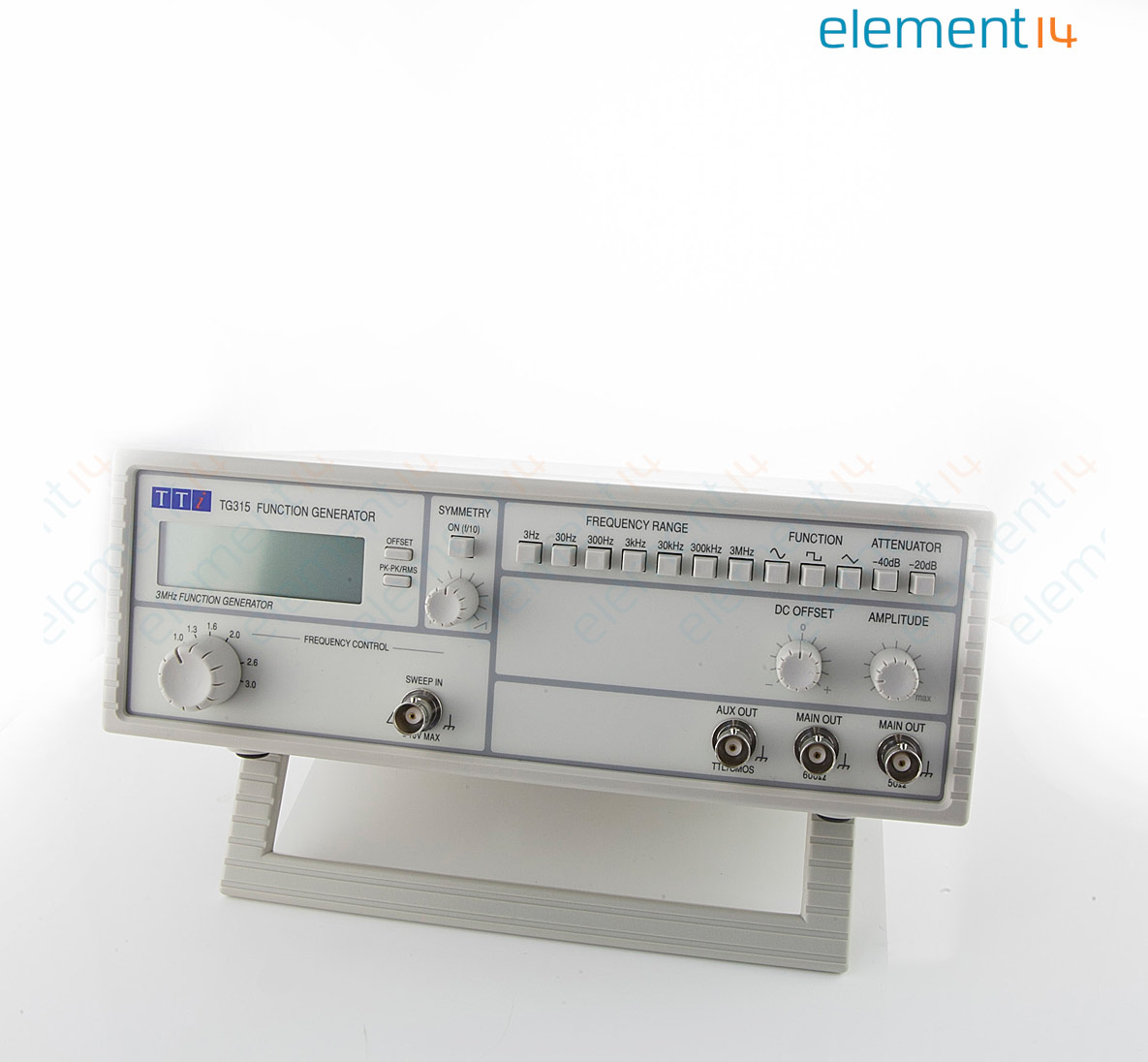

TG315
Function Generator, 1 Channel, 3 MHz, AM Modulation, 3 Year Warranty
- Manufacturer:
- AIM-TTI INSTRUMENTS AIM-TTI INSTRUMENTS
- Manufacturer Part No:
- TG315
- Order Code:
- 4718495
- Product Range
- TG300
- Technical Datasheet:
- TG315 Datasheet
Product Range Selector (TG300)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Function
- :
- 1 Channel
- :
- TG300
- :
- 3MHz
- :
- AM
- :
- 3 Years
- :
- EU, UK
Technical Documents (1)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview
The TG315 is a TG300 series 3MHZ function generator. It includes dual digital display of frequency and amplitude, along with the basic generator functions of sine, square & triangle waveforms, variable DC offset, variable symmetry and an external sweep input.
- 0.03Hz to 3MHz frequency range
- Simultaneous display of frequency & amplitude
- Very high waveform quality at all frequencies & levels
- 2mV to 20V pk-pk from 50 ohm or 600 ohm
- Auxiliary TTL/CMOS output
- Variable symmetry with constant frequency
- Variable DC offset with zero detent
- 1000:1 frequency change by vernier or sweep voltage
Applications
Sensing & Instrumentation, Signal Processing, Test & Measurement
