DS2478EVKIT#

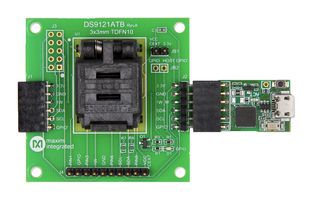

DS2478EVKIT# is a DS2478 evaluation system (EV system) that provides the hardware and software necessary to exercise the features of the DS2478. The EV system consists of five DS2478/DS28E40/DS28C40 devices in a 10-pin TDFN package, two DS9121ATB+ TDFN socket boards along with a DS9481P-300# USB-to-I2C/1-Wire® adapter. The evaluation software runs under Windows® 10, Windows 8, and Windows 7 operating systems, both 64bit and 32bit versions. It provides a convenient user interface to exercise the features of the DS2478 in conjunction with DS28E40 or DS28C40. Communication is Logged to Aid Firmware designer’s Understanding of DS2478 and the DS28E40/DS28C40 Authenticators.

• Demonstrates the features of the DS2478 DeepCover® ECDSA Secure 1-Wire and I2C authenticators
• 1-Wire/I2C USB adapter creates a virtual COM port on any PC
• Fully compliant with USB specification v2.0
• Software runs on Windows 10, Windows 8, and Windows 7 for both 64-Bit and 32bit versions
• 3.3V ±3% 1-wire operating voltage

Contents

5 DS2478ATB/VY+ DeepCover secure coprocessor(10 TDFN), 5 DS28E40ATB/VY+ DeepCover secure authenticator (10 TDFN), 5 DS28C40ATB/VY+ DeepCover secure authenticator (10 TDFN), 2 DS9121ATB+ socket board (10 TDFN), 1 DS9481P-300# USB to I2C/1-wire adapter and 1 USB Type-A to Micro-USB Type-B cable.

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
