                                                                                                  103SR13A-1

                                                                                                  Hall Effect Sensor, Position, 103SR Series, Sink Output, 400 mV out, Cylindrical, 4.5 to 24 Vdc

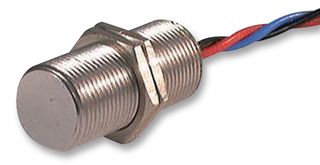

                                                                                                  HONEYWELL 103SR13A-1
                                                                                                  Image is for illustrative purposes only. Please refer to product description.
                                                                                                  ManufacturerHONEYWELL
                                                                                                  Manufacturer Part No103SR13A-1
                                                                                                  Order Code1796909
                                                                                                  Product Range103SR Series
                                                                                                  Technical Datasheet

                                                                                                  Data Sheet

                                                                                                  See all Technical Docs
                                                                                                  Available to Order
                                                                                                  Deliveries start from 10/9/2025.

                                                                                                  Notify me when back in stock

                                                                                                  QuantityPrice (ex VAT)
                                                                                                  1+kr 513.630
                                                                                                  5+kr 505.590
                                                                                                  10+kr 497.540
                                                                                                  25+kr 435.000
                                                                                                  50+kr 380.280
                                                                                                  Price for:Each
                                                                                                  Minimum: 1
                                                                                                  Multiple: 1
                                                                                                  kr 513.63 (ex VAT)
                                                                                                  Enter Your Part No/Line Note
                                                                                                  Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                                                                                                  This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                                                                                                  Product Information

                                                                                                  ManufacturerHONEYWELL
                                                                                                  Manufacturer Part No103SR13A-1
                                                                                                  Order Code1796909
                                                                                                  Product Range103SR Series
                                                                                                  Technical Datasheet

                                                                                                  Data Sheet

                                                                                                  Supply Voltage DC Min4.5V
                                                                                                  Sensor TypeHall-Effect Magnetic Position Sensor
                                                                                                  Supply Voltage DC Max24V
                                                                                                  Nominal Air Gap-
                                                                                                  Maximum Air Gap-
                                                                                                  Sensor TerminalsWire Leads
                                                                                                  Resolution-
                                                                                                  Linearity-
                                                                                                  Output ConfigurationSink
                                                                                                  Output Voltage Min400mV
                                                                                                  Electrical Rotation Angle-
                                                                                                  Supply Voltage Min4.5VDC
                                                                                                  Switching Speed1.5µs
                                                                                                  Supply Voltage Max24VDC
                                                                                                  Rotational Life Cycles-
                                                                                                  IP Rating-
                                                                                                  Sensor HousingCylindrical
                                                                                                  Operating Temperature Min-40°C
                                                                                                  Operating Temperature Max100°C
                                                                                                  Product Range103SR Series
                                                                                                  Qualification-
                                                                                                  SVHCNo SVHC (07-Jul-2017)

                                                                                                  Product Overview

                                                                                                  The 103SR13A-1 is an unipolar hall-effect digital Position Sensor with 15/32-32 UNS-2A cylindrical aluminium threaded housing and 152mm (6-inch) 24-gauge stranded lead wires, irradiated polyethylene insulated termination. Meet NEMA 3, 3R, 3S, 4, 4X (stainless-steel housing), 12 and 13 requirements. They respond to the magnetic field from permanent magnets or electromagnets. This rugged non-contact sensing product use versatile, reliable Hall-effect sensor ICs that are operated by a magnetic field and are designed to respond to alternating North and South Poles or to South Pole only. The hall-effect position sensor includes latching and linear magnetic types. The standard open-collector sinking output (digital devices) or push-pull output (linear device) of the hall-effect position sensor can be easily interfaced with common electronic circuitry such as microprocessors, integrated logic, discrete transistors and SCRs with compatible voltage specifications.

                                                                                                  • Solid state reliability
                                                                                                  • Adjustable mounting
                                                                                                  • -40 to 100°C operating temperature
                                                                                                  • 0.4VDC maximum (operated) output voltage
                                                                                                  • 10mA (maximum at 25°C) supply current
                                                                                                  • 20mA maximum output current
                                                                                                  • 20µA leakage current
                                                                                                  • Static sensitive

                                                                                                  Applications

                                                                                                  Industrial, Logistics, Medical, Robotics, Motor Drive & Control

                                                                                                  Warnings

                                                                                                  ESD sensitive device, take proper precaution while handling the device.

                                                                                                  Technical Specifications

                                                                                                  Supply Voltage DC Min

                                                                                                  4.5V

                                                                                                  Supply Voltage DC Max

                                                                                                  24V

                                                                                                  Maximum Air Gap

                                                                                                  -

                                                                                                  Resolution

                                                                                                  -

                                                                                                  Output Configuration

                                                                                                  Sink

                                                                                                  Electrical Rotation Angle

                                                                                                  -

                                                                                                  Switching Speed

                                                                                                  1.5µs

                                                                                                  Rotational Life Cycles

                                                                                                  -

                                                                                                  Sensor Housing

                                                                                                  Cylindrical

                                                                                                  Operating Temperature Max

                                                                                                  100°C

                                                                                                  Qualification

                                                                                                  -

                                                                                                  Sensor Type

                                                                                                  Hall-Effect Magnetic Position Sensor

                                                                                                  Nominal Air Gap

                                                                                                  -

                                                                                                  Sensor Terminals

                                                                                                  Wire Leads

                                                                                                  Linearity

                                                                                                  -

                                                                                                  Output Voltage Min

                                                                                                  400mV

                                                                                                  Supply Voltage Min

                                                                                                  4.5VDC

                                                                                                  Supply Voltage Max

                                                                                                  24VDC

                                                                                                  IP Rating

                                                                                                  -

                                                                                                  Operating Temperature Min

                                                                                                  -40°C

                                                                                                  Product Range

                                                                                                  103SR Series

                                                                                                  SVHC

                                                                                                  No SVHC (07-Jul-2017)

                                                                                                  Technical Docs (3)

                                                                                                  Product Change Notice EN

                                                                                                  Application Note EN

                                                                                                  Technical Data Sheet EN

                                                                                                  Legislation and Environmental

                                                                                                  Country of Origin:
                                                                                                  Country in which last significant manufacturing process was carried outCountry of Origin:
                                                                                                  Mexico
                                                                                                  Country in which last significant manufacturing process was carried out
                                                                                                  Tariff No:90318080
                                                                                                  US ECCN:EAR99
                                                                                                  EU ECCN:NLR
                                                                                                  RoHS Compliant:Yes

                                                                                                  RoHS

                                                                                                  RoHS Phthalates Compliant:Yes

                                                                                                  RoHS

                                                                                                  SVHC:No SVHC (07-Jul-2017)
                                                                                                  Download Product Compliance Certificate

                                                                                                  Product Compliance Certificate

                                                                                                  Weight (kg):.02268
