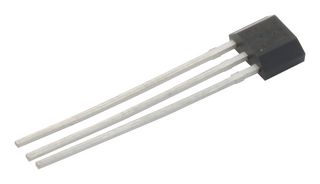

SS41
Hall Effect Sensor, Position, Digital, Bipolar, SS40 Series, Sink Output, 0.15 V out, 4.5 to 24 Vdc
Need more?
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | kr 35.680 |
| 10+ | kr 31.210 |
| 25+ | kr 29.090 |
| 50+ | kr 26.970 |
| 100+ | kr 24.850 |
| 250+ | kr 22.610 |
| 500+ | kr 20.490 |
| 1000+ | kr 18.370 |
Product Information
Product Overview
The SS41 is a bipolar Hall-effect Sensor for respond to alternating North and South poles. A built-in regulator provides stable operation over 4.5VDC to 24VDC supply voltage range and internal circuitry prevents sensor damage in case the supply voltage polarity is accidentally reversed. The SS41 Hall-effect sensors are small, versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet. The open-collector sinking output voltage is easily interfaced with a wide variety of electronic circuits.
- Small Size (0.16 x 0.12")
- Reverse Power Polarity Protection
- Current Sinking Output
- Sensitive Magnetic Characteristics
- Operating Speed from 0kHz to Over 100kHz
Applications
Sensing & Instrumentation, Motor Drive & Control
Technical Specifications
4.5V
TO-92
3Pins
4.5VDC
Sink
-40°C
0.2µs
-
No SVHC (07-Jul-2017)
Bipolar
24V
Through Hole
Rectangular
24VDC
150mV
150°C
-
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
RoHS
RoHS
