T4111002081-000

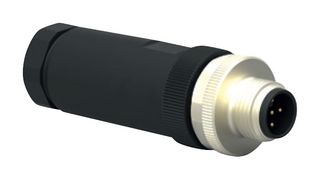

Sensor Connector, PG9/6-8mm, M12, Male, 8 Positions, Screw Pin, Straight Cable Mount
Image is for illustrative purposes only. Please refer to product description.
2,085 In Stock
Need more?
1-3 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | kr 123.580 |
| 10+ | kr 100.010 |
| 25+ | kr 92.540 |
| 100+ | kr 81.850 |
| 250+ | kr 79.670 |
| 500+ | kr 75.760 |
Price for:Each
Minimum: 1
Multiple: 1
kr 123.58 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part NoT4111002081-000
Order Code2627743
Technical Datasheet
Product Range-
Sensor Connector SizeM12
Sensor Connector GenderMale
No. of Positions8 Positions
Sensor Contact TypeScrew Pin
Sensor Connector MountingStraight Cable Mount
IP / NEMA RatingIP67
Connector CodingA Coded
Connector Body MaterialPBT (Polybutylene Terephthalate), Glass Filled Body
Contact MaterialBronze
Contact PlatingGold
Current Rating2A
Voltage Rating30V
SVHCLead (21-Jan-2025)
Product Overview
- Male series straight field installable connector
- M12 male screw connection, straight, unshielded
- 8-pole, circular connector shell size is 20
- Temperature range from -40 to +85°C
- Number of positions are 8
- Contacts preloaded, sealable
- Operating voltage is 30VAC/30VDC
- PBT shell base, circular connector insulation material type is polyamide 66 GF25
- Environmental protection is IP67, operating temperature range from -40 to 85°C
- Contact current rating (max) is 2A, wire size is 20 – 26AWG
Technical Specifications
Product Range
-
Sensor Connector Gender
Male
Sensor Contact Type
Screw Pin
IP / NEMA Rating
IP67
Connector Body Material
PBT (Polybutylene Terephthalate), Glass Filled Body
Contact Plating
Gold
Voltage Rating
30V
Sensor Connector Size
M12
No. of Positions
8 Positions
Sensor Connector Mounting
Straight Cable Mount
Connector Coding
A Coded
Contact Material
Bronze
Current Rating
2A
SVHC
Lead (21-Jan-2025)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.03
