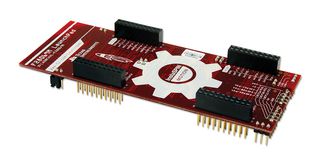

LAUNCHXL-F28069M .

The InstaSPIN-MOTION (and InstaSPIN-FOC) enabled C2000 Piccolo LaunchPad is an inexpensive evaluation platform designed to help you leap right into the world of motor control using the InstaSPIN-MOTION or InstaSPIN-FOC solution. The LaunchPad is based on the Piccolo TMS320F28069M with unique features such as 256KB of on board flash, 12bit ADC, I2C, SPI, UART, CAN, dual Encoder support and InstaSPIN libraries in on-chip execute only ROM memory. The LaunchPad includes many board hardware features such as an integrated isolated XDS100v2 JTAG emulator for easy programming and debugging, Works with various BoosterPacks, but specifically for BOOSTXL-DRV8301.

• Pre programmed C2000 Piccolo F28069 MCU
• Built in isolated XDS100v2 JTAG emulator enables real time in system programming & debugging via USB
• CPU reset button and programmable push button
• Enables development on any Piccolo F2802x device
• Free unrestricted version of CCStudio integrated development environment (IDE) v5
• Free download of controlSUITE software with examples, libraries, application software and more
• Includes 256KB of on board flash, 12bit ADC, I2C, SPI, UART dual Encoder support

Applikasjoner

Lighting, Motor Drive & Control, Sensing & Instrumentation, Power Management

Innhold

C2000 Piccolo LaunchPad Board, Mini USB Cable, Quick Start Guide
