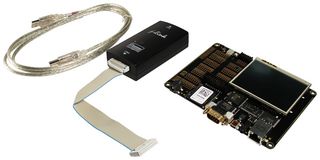

BMSKTOPASA910(DCE)

The BMSKTOPASA910(DCE) is an starter kit for TMPA910CRAXBG, a 32bit ARM926EJ-S based microprocessor operating at up to 200MHz, the new TMPA910CRAXBG uses a seven layer multibus architecture. This architecture significantly improves performance compared to other devices operating at similar processor speeds. The built in LCD controller offers support for TFT and STN display sizes up to 1024pixels x 1024pixels. An LCD data processor accelerator delivers image scaling, filtering and blending functions and offersreal time processing for movies at speeds up to 30 frames per second.

• Ethernet connection
• 3.5inch touch screen display
• Board memory comprises 512Mbit SDRAM, 256Mbit NOR flash and 2Gbit NAND flash
• USB 2.0 device (480Mbps), RS232
• Excellent sound quality (audio DAC via I2S))
• SD card socket
• JTAG interface
• Single power supply (also possible via USB connector)
• Extensive software support

Applikasjoner

Communications & Networking, Automotive, Industrial, Consumer Electronics, Power Management
