SSF213T050
Float Switch, SSF213 Series, Horizontal, Internal Mount, SPST, Stainless Steel, 1 VA, 0.5 m Cable

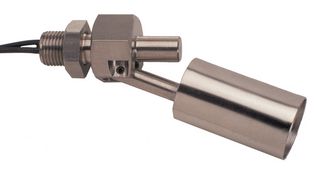

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | kr 2,093.000 |
| 5+ | kr 2,051.000 |
| 10+ | kr 2,009.000 |
| 25+ | kr 1,968.000 |
| 50+ | kr 1,926.000 |
Price for:Each
Minimum: 1
Multiple: 1
kr 2,093.00 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSENSATA / CYNERGY3
Manufacturer Part NoSSF213T050
Order Code2479999
Technical Datasheet
Sensor Body MaterialStainless Steel
Output Current100mA
Operating Pressure Max5bar
Product Range-
Product Overview
The SSF213T050 is a miniature Horizontal Float Switch that is fitted internally in the side of the tank, so requires access to the inside of the tank. The total length inside the tank is 54.5mm. The device is manufactured in SS 304 and will work in liquids of SG 0.8 minimum. The switch action can be reversed by mounting the device with the float able to move upwards away from the body, instead of the more normal downwards direction.
- Short reach, miniature switch
- Internal mount via 1/8”BSP
- User configurable N/O (make on rise) or N/C (make on fall)
- Signal switching only
Applications
Sensing & Instrumentation
Technical Specifications
Sensor Body Material
Stainless Steel
Operating Pressure Max
5bar
Output Current
100mA
Product Range
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:90261089
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.043545
