FC1602B01-FHYYBW-51SK
Alphanumeric LCD, 16 x 2, Black on Yellow / Green, 5V, English, Euro, Transflective

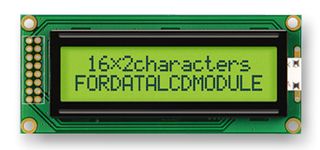

Image is for illustrative purposes only. Please refer to product description.
ManufacturerFORDATA
Manufacturer Part NoFC1602B01-FHYYBW-51SK
Order Code2674158
Also Known AsFC1602B01-FHYYBW-51SK, FC1602B01-FHYYBW-51
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
| Quantity | Price (ex VAT) |
|---|---|
| 45+ | kr 100.910 |
Price for:Each
Minimum: 45
Multiple: 45
kr 4,540.95 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerFORDATA
Manufacturer Part NoFC1602B01-FHYYBW-51SK
Order Code2674158
Also Known AsFC1602B01-FHYYBW-51SK, FC1602B01-FHYYBW-51
Technical Datasheet
Character Count x Line16 x 2
Display AppearanceBlack on Yellow / Green
Logic Voltage5V
Interface Type-
Font SetEnglish, Euro
Display ModeTransflective
Character Size5.23mm
LCD Display TypeSTN
Module Size85mm x 36mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourYellow Green
Product Range-
Product Overview
The FC1602B01-FHYYBW-51SK from Fordata is a character type standard LCD module. The overall size of module is 85mm x 36mm (W x H), character size is 3mm x 5.23mm (W x H), character pitch is 0.51mm x 0.52mm (W x H).
- Typical input voltage of 5V
- Supply current is 1.5mA at VDD = 5V
- 16 character number per line & 2 character line
- K version font map code, 1/16 driving duty & 1/5 driving bias
- Positive transflective polarizer
- Edge type LED backlight (long life span version)
- Yellow-green backlight colour
- Yellow-green STN LCD panel
- Bottom 6:00 viewing angle
- Operating temperature range from -20°C to 70°C (single supply voltage)
Applications
Imaging, Video & Vision
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
Character Count x Line
16 x 2
Logic Voltage
5V
Font Set
English, Euro
Character Size
5.23mm
Module Size
85mm x 36mm
Operating Temperature Max
70°C
Backlighting Colour
Yellow Green
Display Appearance
Black on Yellow / Green
Interface Type
-
Display Mode
Transflective
LCD Display Type
STN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.05
