Product Information
ManufacturerGCT
Manufacturer Part NoSIM8050-6-0-14-01-A
Order Code2784976
Product RangeSIM8050
Technical Datasheet
Memory / Card TypeNano SIM
Insert & Eject MechanismPush-Pull
Connector TypeNano SIM
No. of Contacts6Contacts
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Product RangeSIM8050
SVHCNo SVHC (27-Jun-2024)
Product Overview

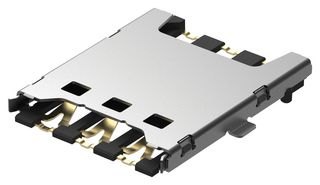

The SIM8050-6-0-14-01-A is a 6-contact black push-pull 4FF Nano SIM Connector with 15µinch gold plated phosphor bronze contacts, an UL94V-0 LCP housing and stainless steel (SUS301) metallic shell. The SIM7050 series connector has surface type PCB mount.
- No switch, with locating peg
- 1.35mm Profile
- 0.5A Maximum current rating
- 30V Maximum voltage rating
- 100mΩ Maximum contact resistance
- 100mΩ Maximum contact resistance
- 200VAC for one minute Dielectric withstanding voltage
- 5000 Cycles durability
Applications
Industrial, Consumer Electronics
Technical Specifications
Memory / Card Type
Nano SIM
Connector Type
Nano SIM
Contact Material
Phosphor Bronze
Product Range
SIM8050
Insert & Eject Mechanism
Push-Pull
No. of Contacts
6Contacts
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (27-Jun-2024)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0002
