MC22405C6WK-SPR
Alphanumeric LCD, 24 x 2, Black on Yellow / Green, 5V, Parallel, English, Euro, Reflective

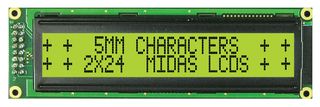

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMC22405C6WK-SPR
Order Code2063255
Product RangeMC22405C6WK
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMC22405C6WK-SPR
Order Code2063255
Product RangeMC22405C6WK
Technical Datasheet
Character Size5.55mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Product RangeMC22405C6WK
Product Overview
- Alphanumeric / character LCD module
- 2 lines of 24 characters - 2 x 24 also referred to as 24 x 2
- Positive mode yellow/green STN material
- Appearance - blue/black characters on yellow/green background
- reflective technology, generally for high ambient light and low power applications
- Chip on board construction (COB) for easy mounting
- On board controller SPLC780 or equivalent (HD44780 derivative)
- English/European font sets
- 5V logic supply, standard parallel interface
- Display duty 1/16, Driving bias 1/5
- No backlight
- Preferred view angle - 6 o'clock
- -20 to +70°C wide operating temperature range
- 16 way through hole DIL (side, left, 2x8) connection, 2.54mm pitch
- Overall max dimensions - 118.0 x 36.0 x 13.6mm
- Viewing area - 94.5 x 16.0mm
- 5mm character (actual dimension 3.20 x 5.55mm)
Technical Specifications
Character Size
5.55mm
Operating Temperature Max
70°C
Operating Temperature Min
-20°C
Product Range
MC22405C6WK
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.06
