NCL2801LED1GEVB
EVAL BOARD, 200W POWER FACTOR CTRL

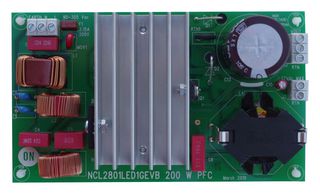

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 54 week(s)
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | kr 2,253.000 |
| 5+ | kr 2,215.000 |
Price for:Each
Minimum: 1
Multiple: 1
kr 2,253.00 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerONSEMI
Manufacturer Part NoNCL2801LED1GEVB
Order Code3131467
Device TopologyBoost
No. of Outputs1Outputs
Output Current-
Output Voltage450VDC
Input Voltage Min100VAC
Input Voltage Max277VAC
Core ChipNCL2801
Dimming Control TypeAnalogue
Kit ContentsEval Board NCL2801
Product Range-
SVHCNo SVHC (15-Jan-2018)
Product Overview
High precision 200W power factor controller board is configured as a 200W power factor corrector front end suitable for conditioning the input power of various switch mode power supplies. This board provides high power factor and low total harmonic distortion of input current over the extended input voltage range and very wide output load range. Performance exceeds requirements for many demanding applications including LED lighting, computing power and white goods products.
- Very low THDi across a wide operating range
- High power factor
- Fast response to dynamic loading
- Valley count frequency foldback improves efficiency
- Tight output voltage regulation
- Two levels of overvoltage protection
- Brown out/in protection, line feedforward
- Current limit, open/short pin protection
- Input voltage range from 100 to 277VAC
- Output voltage of 450V ±4% VDC, efficiency (<gt/>30% load, 230VAC) of 95% minimum
