Product Information
ManufacturerSEMIKRON
Manufacturer Part NoSKKD 46/12
Order Code2423632
Product RangeSKKD
Technical Datasheet
Repetitive Peak Reverse Voltage1.2kV
Average Forward Current47A
Forward Voltage Max1.95V
Diode Module Configuration1 Pair Series Connection
Diode Case StyleModule
No. of Pins3Pins
Operating Temperature Max125°C
Forward Surge Current700A
Diode MountingPanel
Product RangeSKKD
SVHCLead (17-Jan-2023)
Alternatives for SKKD 46/12
1 Product Found
Product Overview

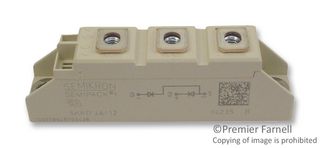

The SKKD 46/12 is a SEMIPACK® 1 Rectifier Diode Module with hard solder joints for high reliability. It is suitable for non-controllable rectifiers for AC/AC converters, line rectifiers for transistorized AC motor controllers and field supply for DC motors applications.
- Heat transfer through aluminium oxide ceramic isolated metal baseplate
Applications
Power Management, Motor Drive & Control, Industrial
Technical Specifications
Repetitive Peak Reverse Voltage
1.2kV
Forward Voltage Max
1.95V
Diode Case Style
Module
Operating Temperature Max
125°C
Diode Mounting
Panel
SVHC
Lead (17-Jan-2023)
Average Forward Current
47A
Diode Module Configuration
1 Pair Series Connection
No. of Pins
3Pins
Forward Surge Current
700A
Product Range
SKKD
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Slovak Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Slovak Republic
Country in which last significant manufacturing process was carried out
Tariff No:85411000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (17-Jan-2023)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.094483
