EBSKBNZWB

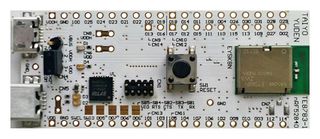

Evaluation Kit, EYSKBNZWB Bluetooth BLE Module, 256kB RAM, SoftDevice, J-Link Debugger
Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerTAIYO YUDEN
Manufacturer Part NoEBSKBNZWB
Order Code3105663
Technical Datasheet
Silicon ManufacturerNordic Semiconductor
Silicon Core NumbernRF52840
Kit Application TypeWireless Connectivity
Application Sub TypeBluetooth Low Energy
Kit ContentsEvaluation Board nRF52840
Product Range-
SVHCTo Be Advised
Product Overview
- Evaluation board for Bluetooth® low energy module EYSKBNZWB
- Bluetooth® version: 5.0 (support: 2M / 1M / 500K / 125Kbps)
- 2402 to 2480MHz frequency, +8dBm maximum output power, nRF52840 (Nordic) chip
- Single power supply range from 1.7V to 5.5V
- Single Mode Bluetooth® low energy / 802.15.4 radio support
- Integrated system/sleep clock, integrated high performance pattern antenna
- ARM® Cortex M4F 32bit processor and 1MB flash and 256KB RAM
- ARM® TrustZone® Cryptocell 310 cryptographic accelerator
- USB, SPI, UART, I2C, I2S, PDM and 12bit ADC, NFC-A interface
- Bluetooth® and Japan, FCC, ISED qualified
Technical Specifications
Silicon Manufacturer
Nordic Semiconductor
Kit Application Type
Wireless Connectivity
Kit Contents
Evaluation Board nRF52840
SVHC
To Be Advised
Silicon Core Number
nRF52840
Application Sub Type
Bluetooth Low Energy
Product Range
-
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:5A002.a.1
EU ECCN:5A002.a.1
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.03
